MySQL replication in action - Part 3: all-masters P2P topology

Previous episodes:




In the previous article, we saw the basics of establishing replication from multiple origins to the same destination. By extending that concept, we can deploy more complex topologies, such as the point-to-point (P2P) all-masters topology, a robust and fast way of moving data.

Introduction to P2P all-masters topology

A P2P (Point-to-point) topology is a kind of deployment where replication happens in a single step from the producer to the consumers. For example, in a master/slave topology, replication from the master (producer) reaches every slave (consumer) in one step. This is simple P2P replication. If we use a hierarchical deployment, where every slave that is connected to the master is also replicating to one or more slaves, we will have a 2-step replication (Figure 1). Similarly, in circular replication, we have as many steps as the number of nodes minus one (Figure 2.)
Hierarchical master slave processing Figure 1 - Hierarchical replication depth of processing

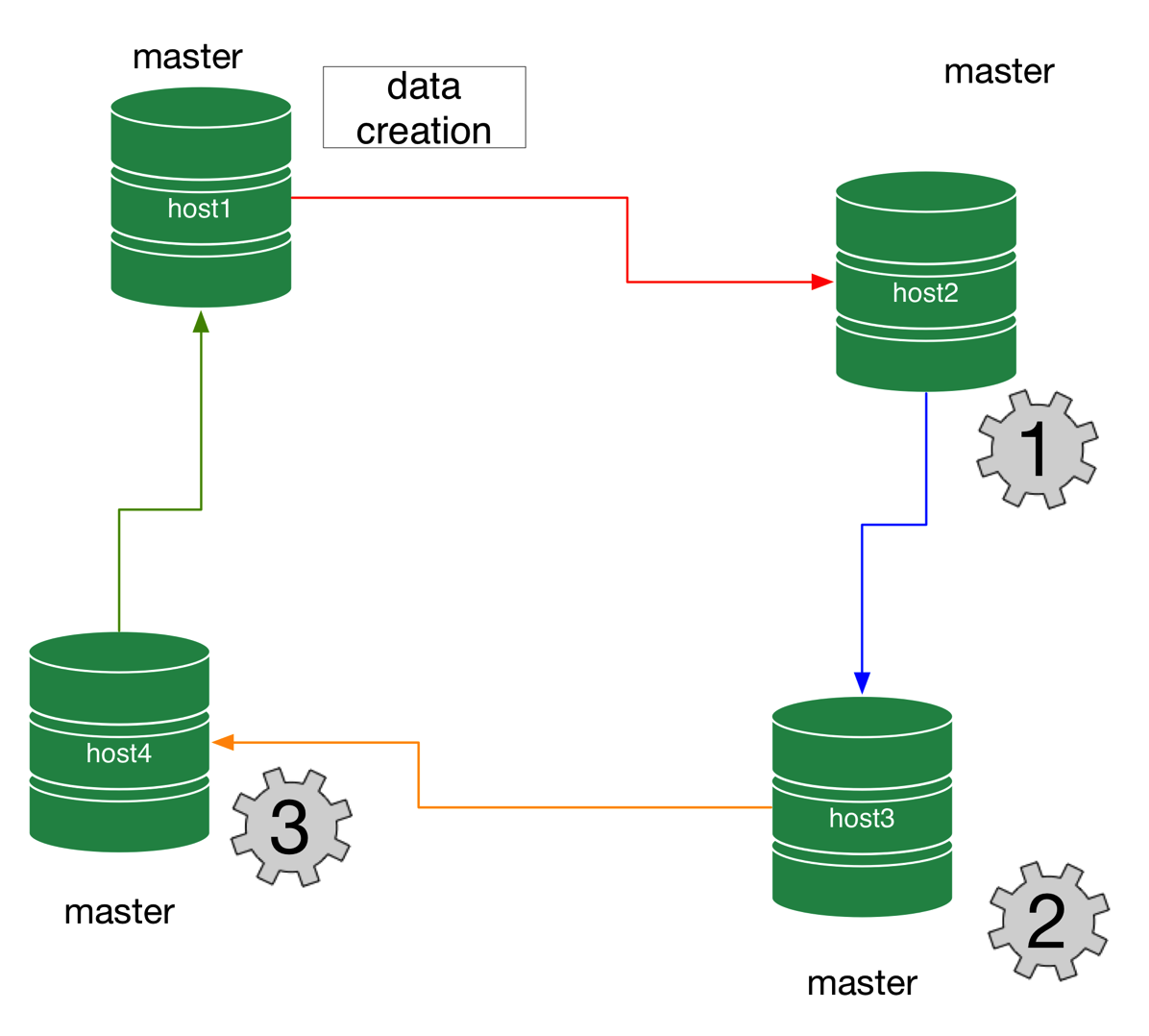

Circular replication processing Figure 2 - Circular replication depth of processing
Why is this important? The number of steps affects performance, resilience, and, potentially, accuracy.
  • Performance depends on the number of steps. Before the final leaf of the topology graph gets the data, it will replicate N times, one for each step. In figure 1, host4 will be updated twice as slower as host2. In Figure 2, host4 will be three times slower than host2, as it has to wait for two steps before data reaches its tables.
  • Resilience, or the capacity to withstand failures, also depends on the number of intermediate steps. Intermediate masters are single points of failure (SPOF) that can break a branch of the topology graph, or the whole deployment. In this context, a master/slave deployment has one SPOF; the topology in figure 1 has 2, and the circular replication has 4 of them.
  • Accuracy can be different if the data goes from master to slave directly, compared to the data going through one or more intermediaries. If data is applied and then extracted again, its chances of reaching the final destination unchanged depend on the intermediate masters to have exactly the same configuration as its predecessors in the chain.
With multi-source replication, we can overcome the limitations of circular topologies, and create a functionally corresponding deployment that has no SPOF, and it is, by virtue of its direct connections, faster and potentially more accurate than its predecessors.
Point to point all masters Figure 3 - All-masters P2P replication
An all-masters P2P topology is a lot like fan-in topology, but with the number of nodes, masters, and slaves being the same. If all the nodes are fan-in slaves, and are also masters at the same time, every node can get data from the others and can send data at the same time.
Point to point all masters processing Figure 4 - All-masters P2P replication depth of processing
In an all-masters P2P topology, each node replicates to every other node. Compared to circular replication, this deployment requires more connections per node (it's a small price to pay) but the data flows faster and more cleanly, as the origin of each transaction is easier to track.

Deploying a P2P all-masters topology in MySQL 5.7

The procedure is the same that we have seen for fan-in replication, but with a few differences:
  • Every node needs to be a master, and therefore it must have binary logs configured;
  • The procedure for connecting to the other nodes needs to be repeated for each node. In a N-node deployment, you will end up having, for each node, N-1 slave channels.
We will repeat the installation that we used for FAN-IN, running the same script from mysql-replication-samples. The difference in invocation will be that we ask for ALL-MASTERS:
$ ./multi_source.sh 5.7.8 mysql ALL-MASTERS
installing node 1
installing node 2
installing node 3
installing node 4
group directory installed in $HOME/sandboxes/multi_msb_5_7_8
# server: 1:
# server: 2:
# server: 3:
# server: 4:
# option 'master-info-repository=table' added to node1 configuration file
# option 'relay-log-info-repository=table' added to node1 configuration file
# option 'gtid_mode=ON' added to node1 configuration file
# option 'enforce-gtid-consistency' added to node1 configuration file
# option 'master-info-repository=table' added to node2 configuration file
# option 'relay-log-info-repository=table' added to node2 configuration file
# option 'gtid_mode=ON' added to node2 configuration file
# option 'enforce-gtid-consistency' added to node2 configuration file
# option 'master-info-repository=table' added to node3 configuration file
# option 'relay-log-info-repository=table' added to node3 configuration file
# option 'gtid_mode=ON' added to node3 configuration file
# option 'enforce-gtid-consistency' added to node3 configuration file
# option 'master-info-repository=table' added to node4 configuration file
# option 'relay-log-info-repository=table' added to node4 configuration file
# option 'gtid_mode=ON' added to node4 configuration file
# option 'enforce-gtid-consistency' added to node4 configuration file
# executing "stop" on $HOME/sandboxes/multi_msb_5_7_8
executing "stop" on node 1
executing "stop" on node 2
executing "stop" on node 3
executing "stop" on node 4
# executing "start" on $HOME/sandboxes/multi_msb_5_7_8
executing "start" on node 1
. sandbox server started
executing "start" on node 2
. sandbox server started
executing "start" on node 3
. sandbox server started
executing "start" on node 4
. sandbox server started
# Setting topology ALL-MASTERS
# node node1
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8380, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node2'
START SLAVE for channel  'node2'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8381, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node3'
START SLAVE for channel  'node3'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8382, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node4'
START SLAVE for channel  'node4'
--------------

# node node2
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8379, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node1'
START SLAVE for channel  'node1'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8381, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node3'
START SLAVE for channel  'node3'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8382, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node4'
START SLAVE for channel  'node4'
--------------

# node node3
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8379, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node1'
START SLAVE for channel  'node1'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8380, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node2'
START SLAVE for channel  'node2'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8382, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node4'
START SLAVE for channel  'node4'
--------------

# node node4
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8379, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node1'
START SLAVE for channel  'node1'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8380, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node2'
START SLAVE for channel  'node2'
--------------
CHANGE MASTER TO MASTER_HOST='127.0.0.1', MASTER_PORT=8381, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_AUTO_POSITION=1 for channel 'node3'
START SLAVE for channel  'node3'
--------------

$HOME/git/mysql-replication-samples/test_all_masters_replication.sh -> $HOME/sandboxes/multi_msb_5_7_8/test_all_masters_replication.sh
The procedure is similar, but since we are connecting all nodes instead of just one, the list of operations is longer. You can see that we have enabled GTID and crash-safe tables, as we did for FAN-IN, and we have executed a grand total of 12 'CHANGE MASTER TO' statements. AT the end of the installation, we have a test script that will tell us if replication is working. This script will create one table for each node, and then check that each node has got 4 tables
$ ./test_all_masters_replication.sh
# NODE node1 created table test_node1
# NODE node2 created table test_node2
# NODE node3 created table test_node3
# NODE node4 created table test_node4
# Data in all nodes
101
1 101 8379 node1 2015-08-12 19:40:35
1 102 8380 node2 2015-08-12 19:40:35
1 103 8381 node3 2015-08-12 19:40:35
1 104 8382 node4 2015-08-12 19:40:35
102
1 101 8379 node1 2015-08-12 19:40:35
1 102 8380 node2 2015-08-12 19:40:35
1 103 8381 node3 2015-08-12 19:40:35
1 104 8382 node4 2015-08-12 19:40:35
103
1 101 8379 node1 2015-08-12 19:40:35
1 102 8380 node2 2015-08-12 19:40:35
1 103 8381 node3 2015-08-12 19:40:35
1 104 8382 node4 2015-08-12 19:40:35
104
1 101 8379 node1 2015-08-12 19:40:35
1 102 8380 node2 2015-08-12 19:40:35
1 103 8381 node3 2015-08-12 19:40:35
1 104 8382 node4 2015-08-12 19:40:35
The output shows that each node has got 4 tables. Replication is working as expected. We can have a look at the monitoring options, to see how useful and clear they are in this topology.
As we did for fan-in topologies, we load the Sakila database in one of the nodes, to get some differences, and then look at the GTID situation:
$ for N in 1 2 3 4 ; do ./n$N -e 'select @@server_id, @@server_uuid; select @@global.gtid_executed\G'; done
+-------------+--------------------------------------+
| @@server_id | @@server_uuid                        |
+-------------+--------------------------------------+
|         101 | 18fd3be0-4119-11e5-97cd-24acf2bbd1e4 |
+-------------+--------------------------------------+
*************************** 1. row ***************************
@@global.gtid_executed: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
+-------------+--------------------------------------+
| @@server_id | @@server_uuid                        |
+-------------+--------------------------------------+
|         102 | 1e629814-4119-11e5-85cf-aac6e218d3d8 |
+-------------+--------------------------------------+
*************************** 1. row ***************************
@@global.gtid_executed: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
+-------------+--------------------------------------+
| @@server_id | @@server_uuid                        |
+-------------+--------------------------------------+
|         103 | 226e3350-4119-11e5-8242-de985f123dfc |
+-------------+--------------------------------------+
*************************** 1. row ***************************
@@global.gtid_executed: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
+-------------+--------------------------------------+
| @@server_id | @@server_uuid                        |
+-------------+--------------------------------------+
|         104 | 270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c |
+-------------+--------------------------------------+
*************************** 1. row ***************************
@@global.gtid_executed: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
It's not a pretty sight. It's what we saw for fan-in, but multiplied by 4. Now we know that the price to pay for this efficient topology is an increase in monitoring complexity.
Let's have a look inside:
node1 [localhost] {msandbox} ((none)) > SHOW SLAVE STATUS\G

*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 8380
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000002
          Read_Master_Log_Pos: 1164948
               Relay_Log_File: mysql-relay-node2.000002
                Relay_Log_Pos: 1165161
        Relay_Master_Log_File: mysql-bin.000002
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 1164948
              Relay_Log_Space: 1165370
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 102
                  Master_UUID: 1e629814-4119-11e5-85cf-aac6e218d3d8
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set: 1e629814-4119-11e5-85cf-aac6e218d3d8:1-119
            Executed_Gtid_Set: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
                Auto_Position: 1
         Replicate_Rewrite_DB:
                 Channel_Name: node2
*************************** 2. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 8381
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000002
          Read_Master_Log_Pos: 891
               Relay_Log_File: mysql-relay-node3.000002
                Relay_Log_Pos: 1104
        Relay_Master_Log_File: mysql-bin.000002
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 891
              Relay_Log_Space: 1313
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 103
                  Master_UUID: 226e3350-4119-11e5-8242-de985f123dfc
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set: 226e3350-4119-11e5-8242-de985f123dfc:1-3
            Executed_Gtid_Set: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
                Auto_Position: 1
         Replicate_Rewrite_DB:
                 Channel_Name: node3
*************************** 3. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 8382
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000002
          Read_Master_Log_Pos: 891
               Relay_Log_File: mysql-relay-node4.000002
                Relay_Log_Pos: 1104
        Relay_Master_Log_File: mysql-bin.000002
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 891
              Relay_Log_Space: 1313
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 104
                  Master_UUID: 270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set: 270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
            Executed_Gtid_Set: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
                Auto_Position: 1
         Replicate_Rewrite_DB:
                 Channel_Name: node4
3 rows in set (0.00 sec)
This is a partial view of replication in this deployment. It only applies to node #1, where we see the status of its slave channels. We need to run the same command in all nodes to make sure that replication is healthy everywhere. As mentioned before, we have 12 channels to monitor. Looking at one node only will give us a possibly misleading picture.
And here we can see once more why it was a bad decision not to have a table for master status:
node1 [localhost] {msandbox} (mysql) > show master status\G
*************************** 1. row ***************************
             File: mysql-bin.000002
         Position: 891
     Binlog_Do_DB:
 Binlog_Ignore_DB:
Executed_Gtid_Set: 18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,
1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,
226e3350-4119-11e5-8242-de985f123dfc:1-3,
270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3
1 row in set (0.00 sec)
If we want to match GTID positions in master and slave, we need to get the value of Executed_Gtid_set from master status, or the same information from @@global.gtid_executed, then find the GTID containing the server_uuid belonging to this master within that long string, and finally extract the GTID sequence.
  1. Get the raw info: "18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3,1e629814-4119-11e5-85cf-aac6e218d3d8:1-119,226e3350-4119-11e5-8242-de985f123dfc:1-3,270c0ebe-4119-11e5-a1c9-b7fbc4e42c2c:1-3"
  2. Find the server UUID: "18fd3be0-4119-11e5-97cd-24acf2bbd1e4"
  3. Find the relevant GTID: "18fd3be0-4119-11e5-97cd-24acf2bbd1e4:1-3"
  4. Extract the GTID: "3"
The information in mysql.slave_relay_log_info and performance_schema.replication_* tables will not help us to simplify the task of monitoring replication. All the shortcomings that we have noticed for fan-in are also present for all-masters topologies. The main difference is that the information in SHOW MASTER STATUS and SHOW SLAVE STATUS is more crowded.

Deploying a P2P all-masters topology in MariaDB 10

The installation is fairly similar to MySQL 5.7. We only see the same syntax differences already noted for fan-in topologies.
$ ./multi_source.sh ma10.0.20 mariadb ALL-MASTERS
installing node 1
installing node 2
installing node 3
installing node 4
group directory installed in $HOME/sandboxes/multi_msb_ma10_0_20
# server: 1:
# server: 2:
# server: 3:
# server: 4:
# server: 1:
# server: 2:
# server: 3:
# server: 4:
# Setting topology ALL-MASTERS
# node node1
--------------
CHANGE MASTER 'node2' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19022, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node2'
--------------
CHANGE MASTER 'node3' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19023, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node3'
--------------
CHANGE MASTER 'node4' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19024, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node4'
--------------

# node node2
--------------
CHANGE MASTER 'node1' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19021, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node1'
--------------
CHANGE MASTER 'node3' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19023, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node3'
--------------
CHANGE MASTER 'node4' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19024, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node4'
--------------

# node node3
--------------
CHANGE MASTER 'node1' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19021, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node1'
--------------
CHANGE MASTER 'node2' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19022, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node2'
--------------
CHANGE MASTER 'node4' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19024, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node4'
--------------

# node node4
--------------
CHANGE MASTER 'node1' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19021, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node1'
--------------
CHANGE MASTER 'node2' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19022, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node2'
--------------
CHANGE MASTER 'node3' TO MASTER_HOST='127.0.0.1', MASTER_PORT=19023, MASTER_USER='rsandbox', MASTER_PASSWORD='rsandbox', MASTER_USE_GTID=current_pos
START SLAVE  'node3'
--------------
And the test script produces similar results:
$ ./test_all_masters_replication.sh
# NODE node1 created table test_node1
# NODE node2 created table test_node2
# NODE node3 created table test_node3
# NODE node4 created table test_node4
# Data in all nodes
101
1 101 19021 node1 2015-08-12 20:20:46
1 102 19021 node2 2015-08-12 20:20:47
1 103 19021 node3 2015-08-12 20:20:47
1 104 19021 node4 2015-08-12 20:20:47
102
1 101 19022 node1 2015-08-12 20:20:46
1 102 19022 node2 2015-08-12 20:20:47
1 103 19022 node3 2015-08-12 20:20:47
1 104 19022 node4 2015-08-12 20:20:47
103
1 101 19023 node1 2015-08-12 20:20:46
1 102 19023 node2 2015-08-12 20:20:47
1 103 19023 node3 2015-08-12 20:20:47
1 104 19023 node4 2015-08-12 20:20:47
104
1 101 19024 node1 2015-08-12 20:20:46
1 102 19024 node2 2015-08-12 20:20:47
1 103 19024 node3 2015-08-12 20:20:47
1 104 19024 node4 2015-08-12 20:20:47
After loading the Sakila database into node #2, we see a familiar pattern, already noted for fan-in. The GTID is shown as a comma delimited list of all the data streams that have conveyed in each server.
$ for N in 1 2 3 4; do ./n$N -e 'select @@server_id; select @@global.gtid_current_pos\G' ; done
+-------------+
| @@server_id |
+-------------+
|         101 |
+-------------+
*************************** 1. row ***************************
@@global.gtid_current_pos: 1020-102-119,1040-104-3,1030-103-3,1010-101-3
+-------------+
| @@server_id |
+-------------+
|         102 |
+-------------+
*************************** 1. row ***************************
@@global.gtid_current_pos: 1010-101-3,1040-104-3,1030-103-3,1020-102-119
+-------------+
| @@server_id |
+-------------+
|         103 |
+-------------+
*************************** 1. row ***************************
@@global.gtid_current_pos: 1010-101-3,1040-104-3,1020-102-119,1030-103-3
+-------------+
| @@server_id |
+-------------+
|         104 |
+-------------+
*************************** 1. row ***************************
@@global.gtid_current_pos: 1010-101-3,1030-103-3,1020-102-119,1040-104-3
Looking at SHOW ALL SLAVES STATUS, there are no surprises. The information that was missing from fan-in (GTID executed) is still missing from the slave status.
node1 [localhost] {msandbox} ((none)) > SHOW ALL SLAVES STATUS\G
*************************** 1. row ***************************
              Connection_name: node2
              Slave_SQL_State: Slave has read all relay log; waiting for the slave I/O thread to update it
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 19022
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000001
          Read_Master_Log_Pos: 3230973
               Relay_Log_File: mysql-relay-node2.000002
                Relay_Log_Pos: 3231260
        Relay_Master_Log_File: mysql-bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 3230973
              Relay_Log_Space: 3231559
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 102
               Master_SSL_Crl:
           Master_SSL_Crlpath:
                   Using_Gtid: Current_Pos
                  Gtid_IO_Pos: 1020-102-119
         Retried_transactions: 0
           Max_relay_log_size: 1073741824
         Executed_log_entries: 263
    Slave_received_heartbeats: 3
       Slave_heartbeat_period: 1800.000
               Gtid_Slave_Pos: 1020-102-119,1040-104-3,1030-103-3,1010-101-3
*************************** 2. row ***************************
              Connection_name: node3
              Slave_SQL_State: Slave has read all relay log; waiting for the slave I/O thread to update it
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 19023
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000001
          Read_Master_Log_Pos: 882
               Relay_Log_File: mysql-relay-node3.000002
                Relay_Log_Pos: 1169
        Relay_Master_Log_File: mysql-bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 882
              Relay_Log_Space: 1468
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 103
               Master_SSL_Crl:
           Master_SSL_Crlpath:
                   Using_Gtid: Current_Pos
                  Gtid_IO_Pos: 1030-103-3
         Retried_transactions: 0
           Max_relay_log_size: 1073741824
         Executed_log_entries: 14
    Slave_received_heartbeats: 3
       Slave_heartbeat_period: 1800.000
               Gtid_Slave_Pos: 1020-102-119,1040-104-3,1030-103-3,1010-101-3
*************************** 3. row ***************************
              Connection_name: node4
              Slave_SQL_State: Slave has read all relay log; waiting for the slave I/O thread to update it
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 127.0.0.1
                  Master_User: rsandbox
                  Master_Port: 19024
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000001
          Read_Master_Log_Pos: 882
               Relay_Log_File: mysql-relay-node4.000002
                Relay_Log_Pos: 1169
        Relay_Master_Log_File: mysql-bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 882
              Relay_Log_Space: 1468
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 104
               Master_SSL_Crl:
           Master_SSL_Crlpath:
                   Using_Gtid: Current_Pos
                  Gtid_IO_Pos: 1040-104-3
         Retried_transactions: 0
           Max_relay_log_size: 1073741824
         Executed_log_entries: 14
    Slave_received_heartbeats: 3
       Slave_heartbeat_period: 1800.000
               Gtid_Slave_Pos: 1020-102-119,1040-104-3,1030-103-3,1010-101-3
3 rows in set (0.00 sec)
The contents of the crash-safe data does not offer surprises either. It's the same that we've seen for fan-in, multiplied by 4.
$ for N in 1 2 3 4; do ./n$N -e 'select @@server_id, @@gtid_domain_id; select * from mysql.gtid_slave_pos' ; done
+-------------+------------------+
| @@server_id | @@gtid_domain_id |
+-------------+------------------+
|         101 |             1010 |
+-------------+------------------+
+-----------+--------+-----------+--------+
| domain_id | sub_id | server_id | seq_no |
+-----------+--------+-----------+--------+
|      1020 |    124 |       102 |    118 |
|      1020 |    125 |       102 |    119 |
|      1030 |      5 |       103 |      2 |
|      1030 |      6 |       103 |      3 |
|      1040 |      8 |       104 |      2 |
|      1040 |      9 |       104 |      3 |
+-----------+--------+-----------+--------+

+-------------+------------------+
| @@server_id | @@gtid_domain_id |
+-------------+------------------+
|         102 |             1020 |
+-------------+------------------+
+-----------+--------+-----------+--------+
| domain_id | sub_id | server_id | seq_no |
+-----------+--------+-----------+--------+
|      1010 |      2 |       101 |      2 |
|      1010 |      3 |       101 |      3 |
|      1030 |      5 |       103 |      2 |
|      1030 |      6 |       103 |      3 |
|      1040 |      8 |       104 |      2 |
|      1040 |      9 |       104 |      3 |
+-----------+--------+-----------+--------+

+-------------+------------------+
| @@server_id | @@gtid_domain_id |
+-------------+------------------+
|         103 |             1030 |
+-------------+------------------+
+-----------+--------+-----------+--------+
| domain_id | sub_id | server_id | seq_no |
+-----------+--------+-----------+--------+
|      1010 |      2 |       101 |      2 |
|      1010 |      3 |       101 |      3 |
|      1020 |    124 |       102 |    118 |
|      1020 |    125 |       102 |    119 |
|      1040 |      8 |       104 |      2 |
|      1040 |      9 |       104 |      3 |
+-----------+--------+-----------+--------+

+-------------+------------------+
| @@server_id | @@gtid_domain_id |
+-------------+------------------+
|         104 |             1040 |
+-------------+------------------+
+-----------+--------+-----------+--------+
| domain_id | sub_id | server_id | seq_no |
+-----------+--------+-----------+--------+
|      1010 |      2 |       101 |      2 |
|      1010 |      3 |       101 |      3 |
|      1020 |    124 |       102 |    118 |
|      1020 |    125 |       102 |    119 |
|      1030 |      8 |       103 |      2 |
|      1030 |      9 |       103 |      3 |
+-----------+--------+-----------+--------+

Summing up

Using the methods already learned for fan-in deployments, an all-masters P2P topology is easy to install, albeit longer and more complex.
Monitoring this topology presents the same hurdles already seen for fan-in, increased by the number of connections. For a N-node deployment, we will need to monitor N*(N-1) channels.
The lack of a table for master status is felt more acutely in this topology, as the current data is more difficult to parse.

What's next

This topology shows that we can deploy a very efficient multi-source replication system, at the expense of having many connections and enduring more complex monitoring data.
We can, however, compromise between the need of having many masters and the complexity of the deployment. We will see the star topology, where, by introducing a SPOF in the system we can deploy a more agile all-masters topology. And we will also see some hybrid deployments, all made possible by the multi-source enhancements in MySQL 5.7 and MariaDB 10.
